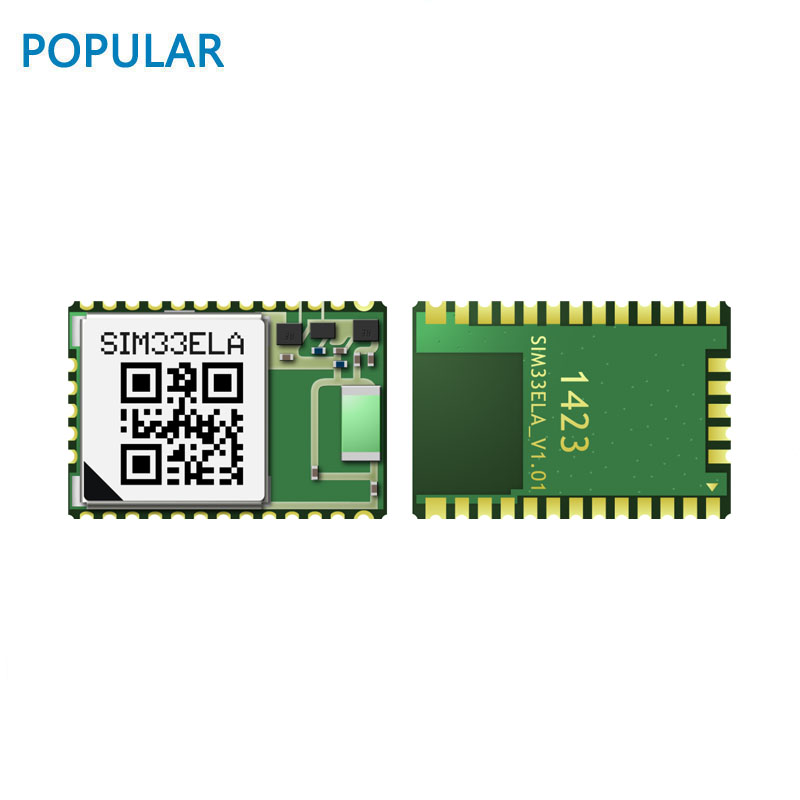

SIMCom presents a high performance GPS module accompany with GNSS antenna - SIM33ELA. This is a standalone GNSS module embedded a linear antenna . Designed with MTK’s high sensitivity navigation engine, it allows you to achieves the industry’s highest levels of sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lowest power consumption. And with embedded antenna in SMT type, it is very easy to embed into customer’s application.
Mechanical data
? Dimensions: 14*9.6*2.15 mm
? Weight: 0.5g
Features
? Support GPS/GLONASS/Galileo/QZSS
? Support EASYTM self-generated orbit prediction
? Support EPOTM orbit prediction
? Support AGPS
? Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
? Support Jamming removing function
? Low-noise amplifier has been integrated
Interfaces
? Serial interfaces
- UART
? Digital I/O
- TIMEMARK(PPS)
- 3D-FIX
- FORCE-ON
? Protocols
- NMEA
- PMTK
Support evaluation products
? SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data
? Power supply: +2.8V ~4.3V
? Backup power: +2.0V ~4.3V
? Power consumption2: 3.3V (typical)
- Acquisition: 25mA
- Tracking: 20mA
- Backup: 14μA
|
Performance data
? Receiver type: 33 tracking / 99 acquisition- channel GNSS receiver
? Max. update rate: 10Hz
? Sensitivity1
- Tracking: -165dBm
- Reacquisition: -160dBm
- Cold starts: -147dBm
? Time-To-First-Fix2
- Cold starts: 28s (typical)
- Warm starts: 26s
- Hot starts: <1s
- EPO Assist: 13s (CTTFF)
? Accuracy
- Automatic Position3: 2.5m CEP
- Speed4: 0.1m/s
? Operation temperature: -40℃~+85 ℃
Certifications
? CE
|
