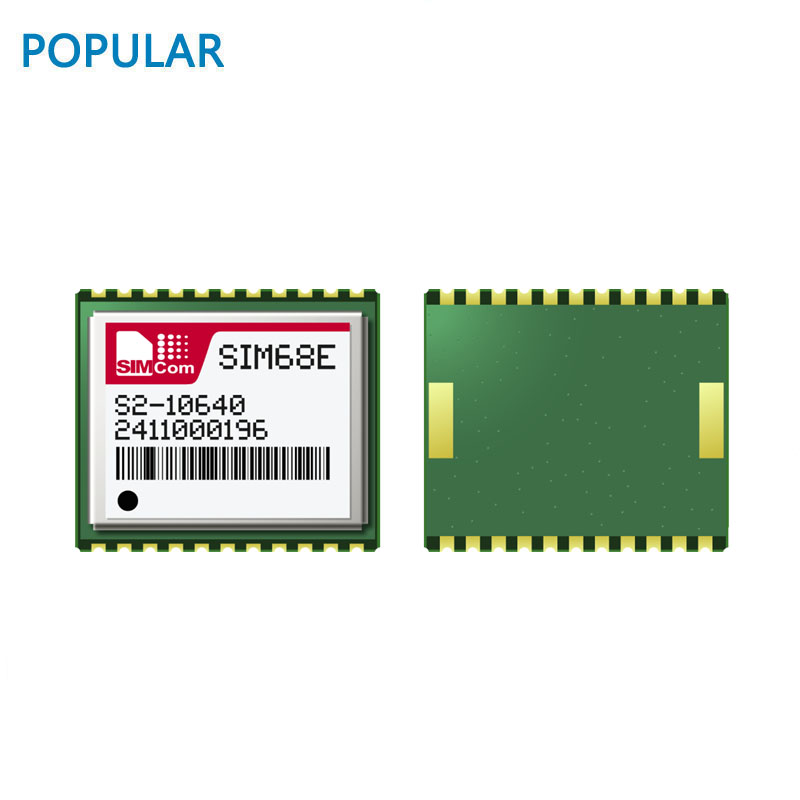

SIMCom presents a high performance and reliable GNSS module - SIM68E. This is GNSS module integrated with GPS & GLONASS system in a SMT type with MTK's high sensitivity navigation engine, which allows customer to achieve industry’s high level sensitivity, accuracy, and Time-to-First-Fix (TTFF) with lower power consumption.
Mechanical data
? Dimensions: 13*15*2.3 mm
? Weight: 0.5g
Features
? Support GPS/GLONASS/Galileo/QZSS
? Support EASYTM self-generated orbit prediction
? Support EPOTM orbit prediction
? Support SBAS ranging (WAAS, EGNOS, GAGAN, MSAS)
? Support Jamming removing function
? Low-noise amplifier has been integrated
Interfaces
? Serial interfaces
- UART
? Digital I/O
- TIMEMARK(PPS)
- GPIO
? Protocols
- NMEA
- PMTK
- PSIM
Support evaluation products
? SIM68 EVB KIT with USB V2.0 full speed interface
Electrical data
? Power supply +2.8V ~4.3V
? Backup power +2.3V ~4.6V
? Power consumption2,5
- Acquisition: 25mA
- Tracking: 20mA
- AlwaysLocateTM: 340uA
- Backup: 14μA
? Antenna type: Active and Passive
|
Performance data
? Receiver type: 33 tracking / 99 acquisition- channel GNSS receiver
? Max.update rate: 10Hz
? Sensitivity1
- Tracking: -165dBm
- Reacquisition: -160dBm
- Cold starts: -148dBm
? Time-To-First-Fix2
- Cold starts: 28s
- Warm starts: 26s
- Hot starts: <1s
- EPO Assist: 13s (CTTFF)
? Accuracy
- Automatic Position3: <2.5m CEP
- Speed4: 0.1m/s
? Operation temperature: -40℃~+85 ℃
Certificate
? CE（in plan)
|
